IP Mesh Radio MD33Pro with 64 Nodes for Drone Data Transmission

Detalles del producto

Lugar de origen: Shénzhen

Nombre de la marca: Suntor

Pago y términos de envío

Consiga el mejor precio

Contacta ahora

Especificaciones

Descripción

Especificaciones

Resaltar:
                                                                                                                                                                                                                                                                                                                                                                                                      IP Mesh Radio MD33Pro drone data, 64 nodes IP Mesh Radio, drone data transmission radio


Rango de frecuencia:	1350~1450MHz	Tecnología de transmisión:	COFDM
Potencia de RF:	2W	Velocidad de datos:	Hasta 25 Mbps
Distancia de transmisión:	Los hasta 40km	Saltos de networking:	>10 lúpulos

Rango de frecuencia:	1350~1450MHz
Tecnología de transmisión:	COFDM
Potencia de RF:	2W
Velocidad de datos:	Hasta 25 Mbps
Distancia de transmisión:	Los hasta 40km
Saltos de networking:	>10 lúpulos

Descripción

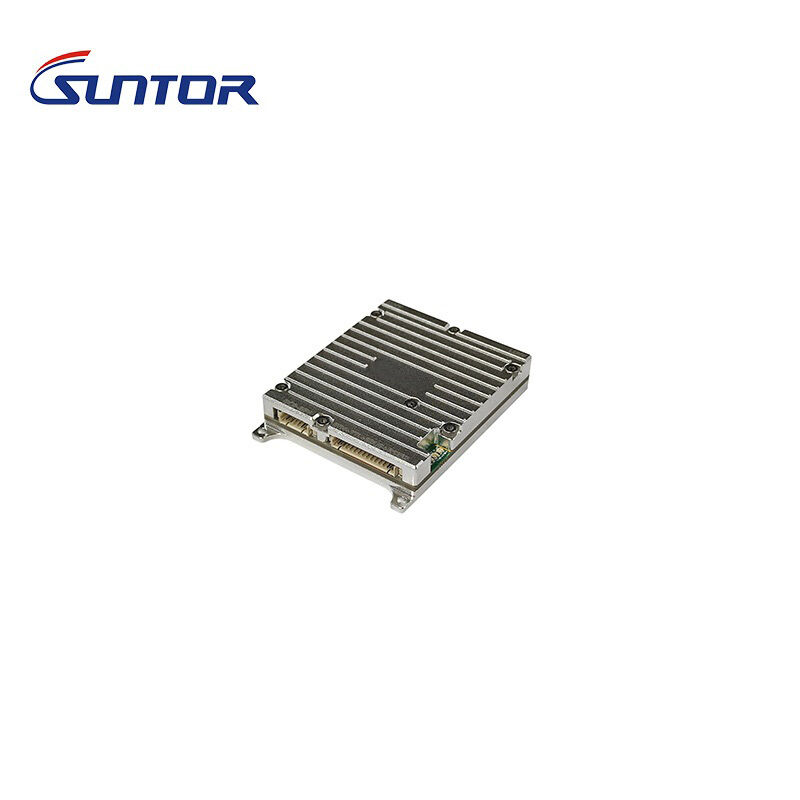

IP Mesh Radio MD33Pro with 64 Nodes for Drone Data Transmission

MD33Pro Air-to-Ground IP Mesh Radio with FHSS Technology

The MD33Pro Drone Mesh Radio is a compact and lightweight broadband wireless communication system designed for UAVs, unmanned platforms, and mobile tactical networking applications. Featuring advanced IP Mesh networking technology, the MD33Pro delivers stable long-range wireless transmission for video, data, and IP communication in complex environments.

Key Features

Up to 40KM Air-to-Ground Transmission Distance
Supports IP Mesh Ad Hoc Networking
More Than 64 Mesh Nodes
High-Speed Broadband Data Rate up to 25Mbps
2W Dual RF Output Power
AES128/AES256 Encryption Protection
IFS/FHSS Frequency Hopping Technology
Compact, Lightweight, and Low Power Design
Fast Network Access Within 5 Seconds
Supports Video, Data, and IP Transmission
Suitable for UAV, UGV, and Mobile Communication Platforms

Mission-Critical Applications

The MD33Pro is optimized for environments where stable wireless communication is essential. Its self-organizing mesh networking capability allows users to quickly establish decentralized communication networks without relying on fixed infrastructure.

UAV Video Transmission
Emergency Rescue Communication
Public Safety Operations
Tactical Mobile Networking
Smart Robotics Communication
Border Surveillance
Firefighting Communication
Industrial Inspection
Temporary Broadband Network Deployment

Advanced Mesh Networking Capability

The MD33Pro adopts advanced MANET (Mobile Ad Hoc Network) technology, allowing each node to automatically join, relay, and rebuild the network dynamically. Even in highly mobile or obstructed environments, the system maintains reliable connectivity through multi-hop transmission.

Self-forming Networking
Self-healing Routing
Multi-hop Relay Transmission
Dynamic Topology Switching
Point-to-Point & Point-to-Multipoint Communication

High Security and Anti-Interference Performance

To ensure secure wireless communication in complex electromagnetic environments, the MD33Pro integrates advanced security and anti-interference technologies that significantly improve transmission stability and communication security during critical missions.

AES128 / AES256 Encryption
COFDM Broadband Transmission
Frequency Hopping Technology
Adaptive Modulation Modes
Strong Anti-Interference Capability

Technical Specifications

Frequency Range	1350~1450MHz (Customizable)
Transmission Technology	COFDM
RF Power	1W * 2
Data Rate	Up to 25Mbps
Mesh Nodes	64+ Nodes
Networking Hops	>10 Hops
Encryption	AES128 / AES256
Modulation	BPSK/QPSK/16QAM/64QAM
Transmission Distance	Up to 40KM Air-to-Ground
Power Supply	DC18~26V
Power Consumption	≤15W Peak
Dimensions	≤109 * 81 * 18mm
Weight	≤175g
Operating Temperature	-40°C to +55°C

Why Choose MD33Pro?

The MD33Pro combines high-speed broadband transmission, flexible mesh networking, and long-range communication into a compact airborne platform. Its rugged wireless performance and scalable network capability make it an ideal solution for modern UAV communication and tactical networking applications.

Whether deployed for emergency response, unmanned systems, or temporary wireless infrastructure, the MD33Pro delivers reliable and secure wireless connectivity where traditional communication systems cannot operate effectively.
